1-1825059-8
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1825059-8
Datasheet:
Description:

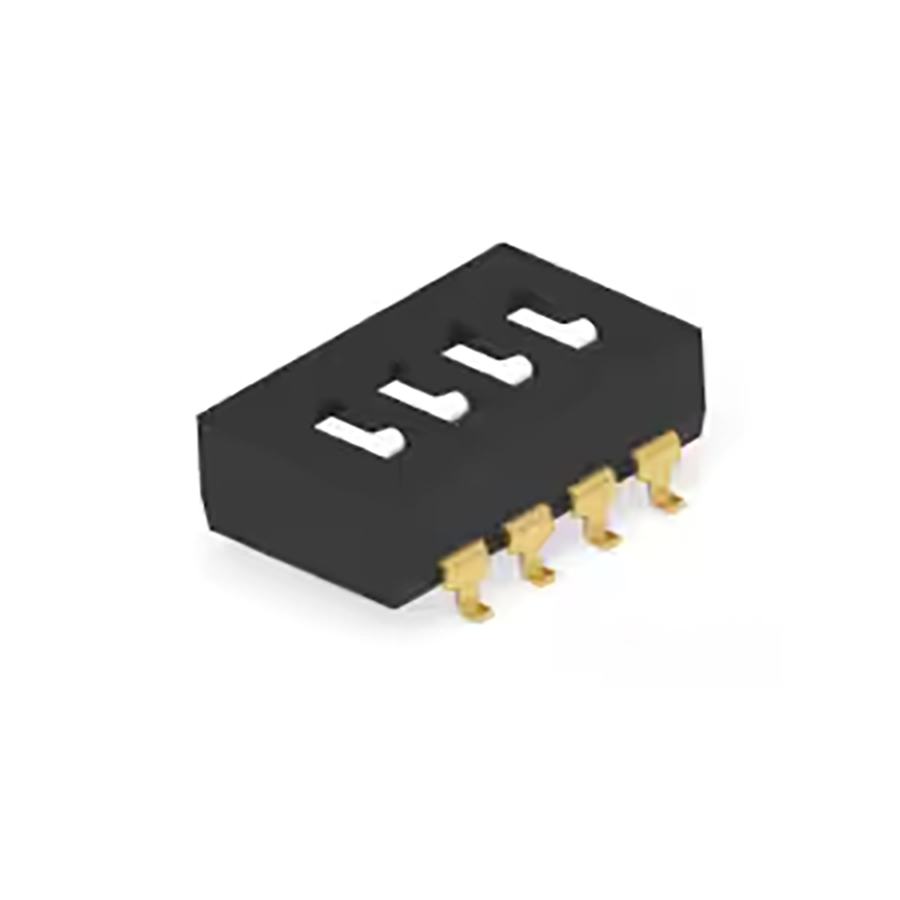

DIP Switches SMD/SMT SPST Number of Positions:4 Current Rating:25 mA Slide (Standard) Switch
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Height - Seated (Max) | 4.5 mm |
| Length | 12.14 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 24 V |
| Circuit Type | SPST |
| Packaging | Reel |
| Depth | 9.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Nickel |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2.54 mm |
| Type | Switch |
| Terminal Pitch | 2.54 mm |
| Current Rating | 25 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 24 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Straight |
| ELV | Compliant |
| Actuator Length | 0 m |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Contact Resistance | 50 mΩ |
| Electrical Life | 1000 cycles |
| Actuator Material | Polyamide |
| Contact Current Rating | 100 mA |
| Housing Color | Black |
| Actuator Type | Slide (Standard) |
| Washable | Yes |
